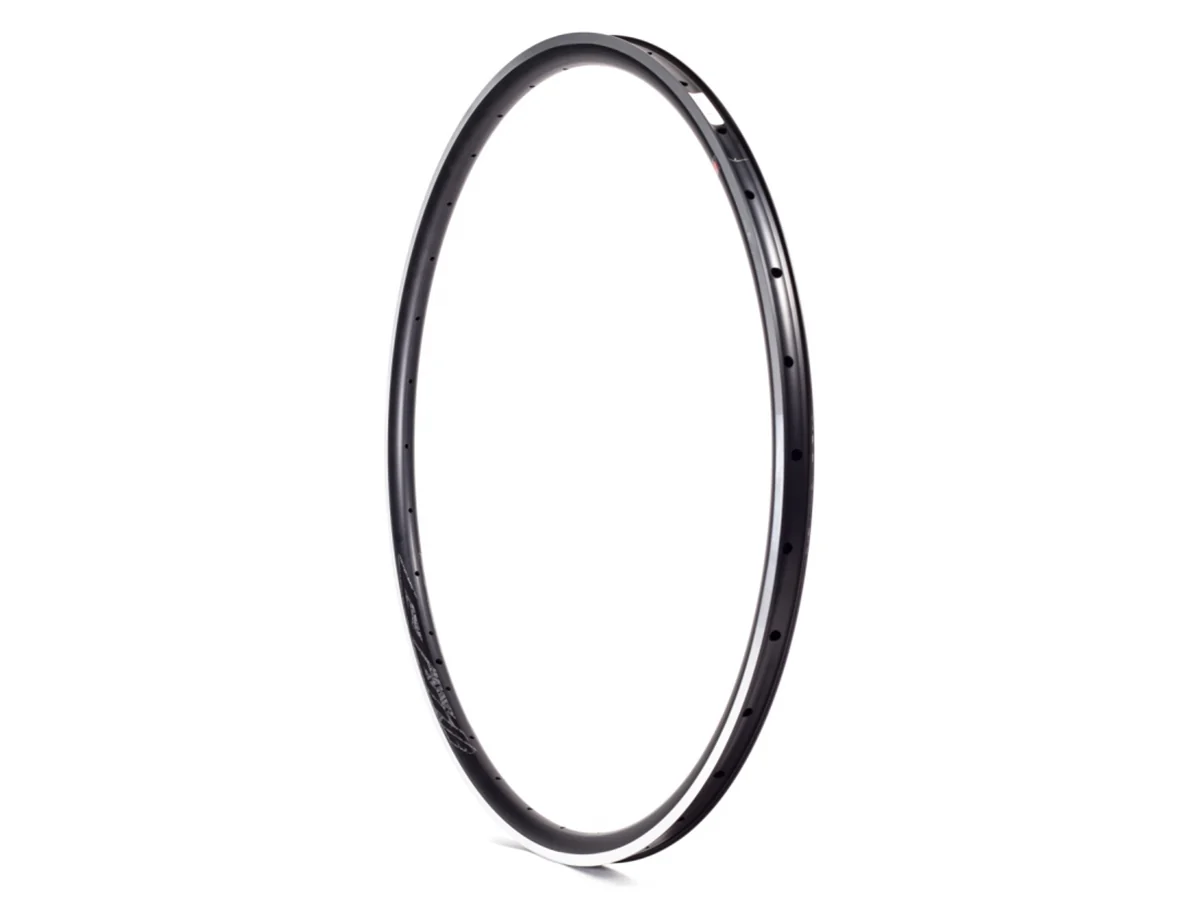

The Velocity rim Quill is a bicycle rim aluminium for practice road/race.

Based on its predecessor the Aileron rim, the new Quill rim is 17.2% wider inside, 26.2% more rigid laterally and 99.3% more rigid radially.

It offers a side wall (brake track) machined (MSW) for use with brakes skates on rim.

It is designed with a very wide profile of 24.5 mm which offers a high rigidity.

The rim is tubeless compatible but requires a conversion kit.



Detailed specifications of the Velocity Quill 700c MSW rim:

• Material: Aluminium
• 700c
• Type: Tyres
• With brake band (MSW - machined sidewall)

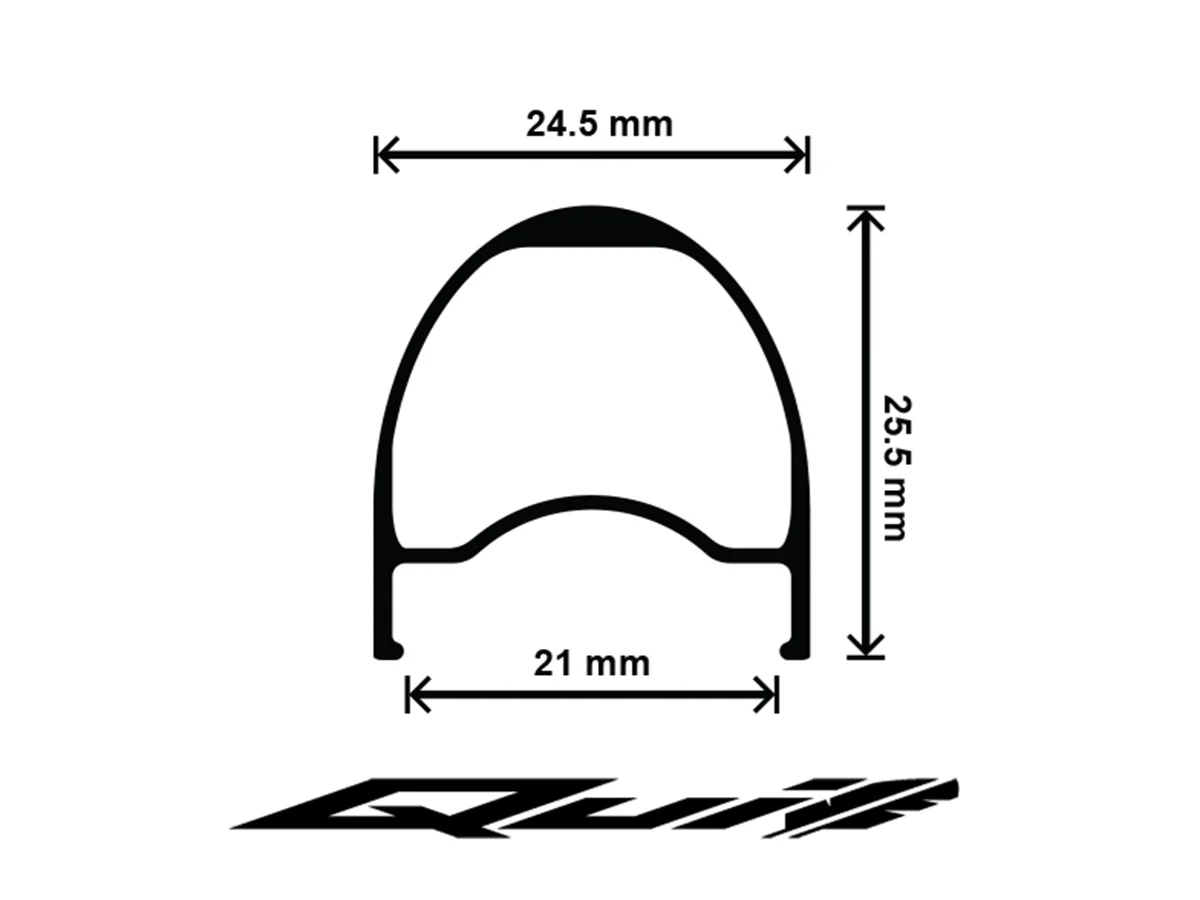

• Rim height: 25.4 mm
• Width: 24.5 mm
• Internal width: 21 mm
• ERD : 589 mm
• Max voltage: 110 - 130 KGF (Kilogram-Force)
• Weight: 465 g
