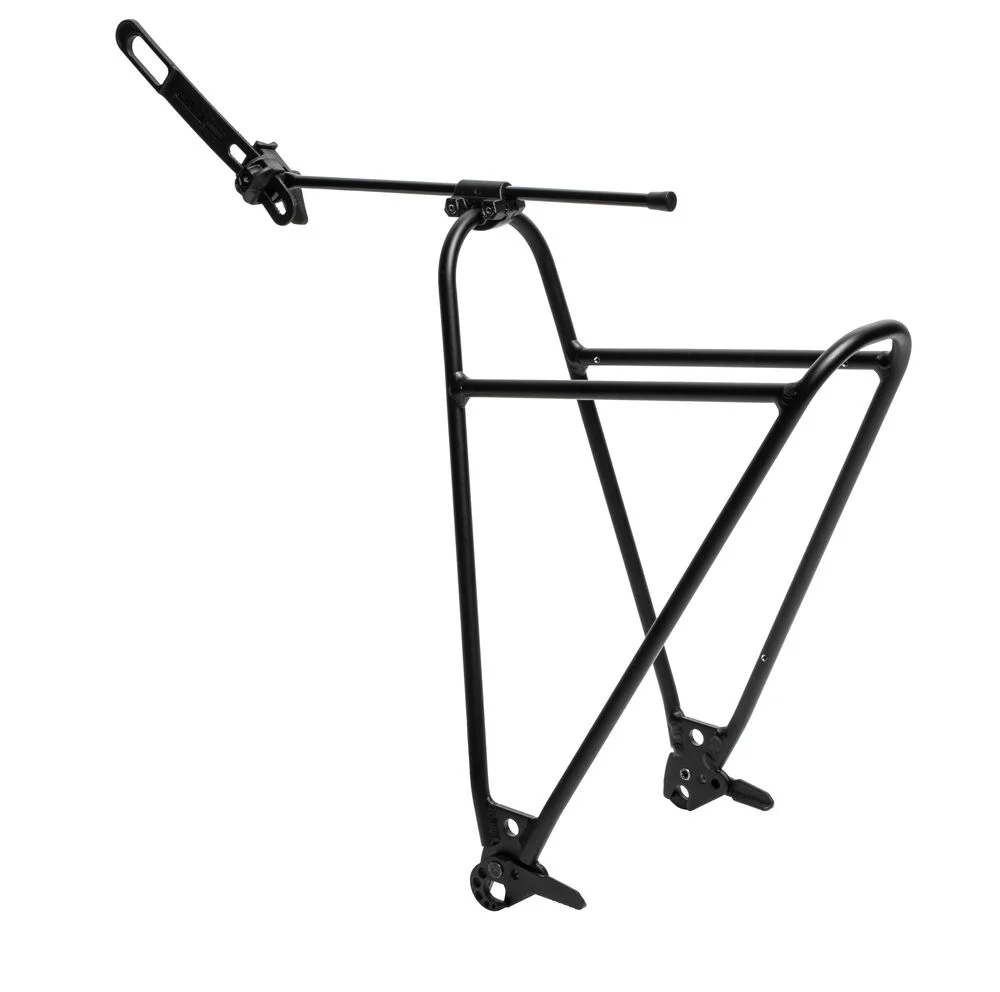

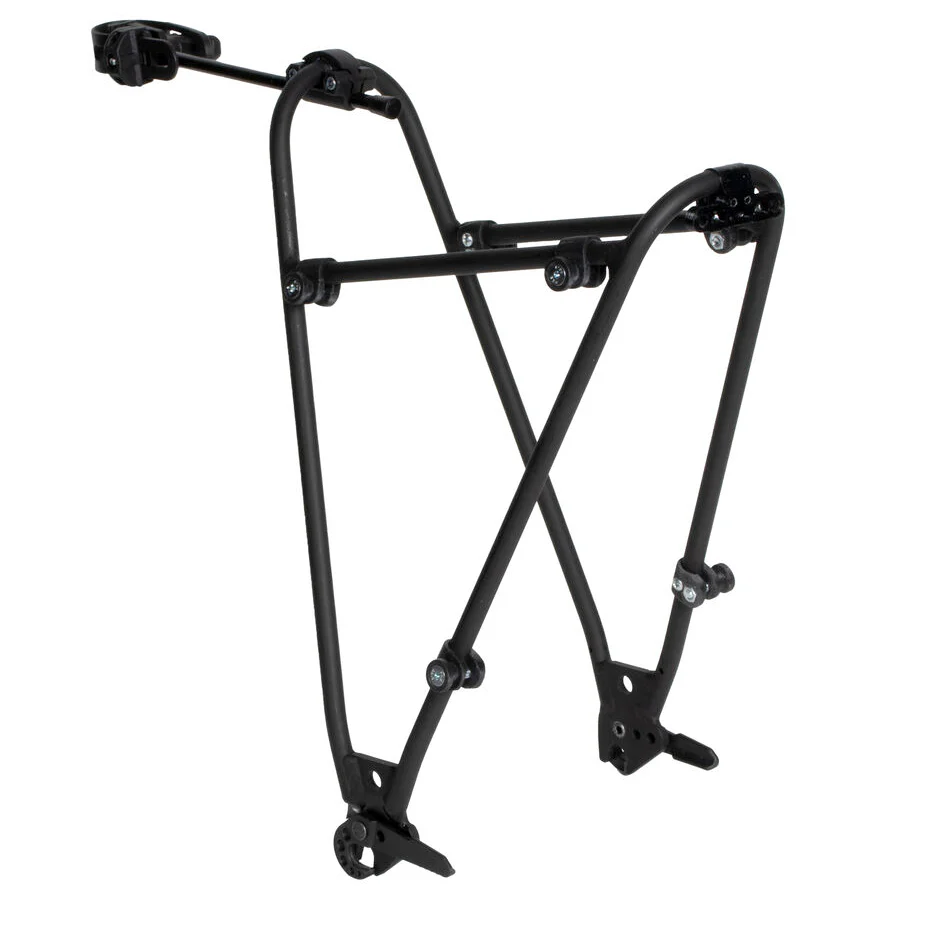

The Quick Rack Light is a removable, lightweight and accessible luggage rack!

The German brand Ortlieb innovates with its new range of removable luggage carriers allowing to maintain the lightness of the bike during a sports trip, for example, and to position the luggage rack there to go to work or shop.

Quick Rack Light Bag Holder is compatible with all bike bags Ortlieb, and all standard market bags.
The rack has the connectors to position ortlieb bags equipped with the QL3.1 fastening system. These connectors can be easily removed if your bags are not equipped or are of another brand.

The Quick Rack Bag Holder is available in two versions:

• The Rack Standard quick, it allows to position a bike bag on each side, it is also equipped with a top platform to position it a rear basket for example.
• The quick Rack Light (presented here), it allows to position a bike bag on each side. Without a platform it will allow people who do not need it to gain some weight and price.

Installation of the luggage rack will be very easy, it will take a few minutes the first time to position some small parts that will remain fixed on the bike. Thereafter the dismantling of the luggage rack will take about 5 seconds and its winding 15 seconds.

The Baggage Doors Ortlieb Quick Rack are designed to integrate mudguards Ortlieb dedicated :

In order to position the luggage carrier the bike must be equipped with m5 or M6 threads on the rear legs (photo below). If your bike does not have any problems this kit will allow you to replace them.

Here is a video of the mounting of the luggage racks Ortlieb Quick Rack:

Detailed specifications of the removable luggage rack Ortlieb Quick Rack Light:

• Version without top platform poruy more lightness
• Lightweight luggage rack with fast mounting system for quick mounting and disassembly on the bike
• 15 seconds for assembly, 5 seconds for dismantling
• Fast transition from a sports bike to a city bike
• For frames with M5 or M6 threaded eyelets on rear legs
• Can be used with complete suspension bikes
• Universal adaptation thanks to the different lengths of legs
• Allows direct attachment of all bags with the QL1 / 2.1 / 3.1 and Top-Lock system of ortlieb
• QL3 / 3.1 support elements are removable
• Suitable for wheel sizes 26-28- and 29-(limited compatibility)
• Horizontal and vertical reinforcements with a 10 mm diameter tube
• Installation kit included; no other mounting parts are required
• Optional rear lamp preparation (lamp not included)
• Charge maximum 20 kg
• Documents to download in Joint Parts
