Minimalist and ultra-compact inflater Lezyne Twin Speed Drive CO2 will delight them weight weenies the most demanding.

Made from'cNC machined aluminium and brass, the manufacturing and finishing quality is at the very high standards of the brand.

Compatible Presta and Schrader the inflator Lezyne Twin Drive will allow you to reinflate your tire on the edge of the road a little time.

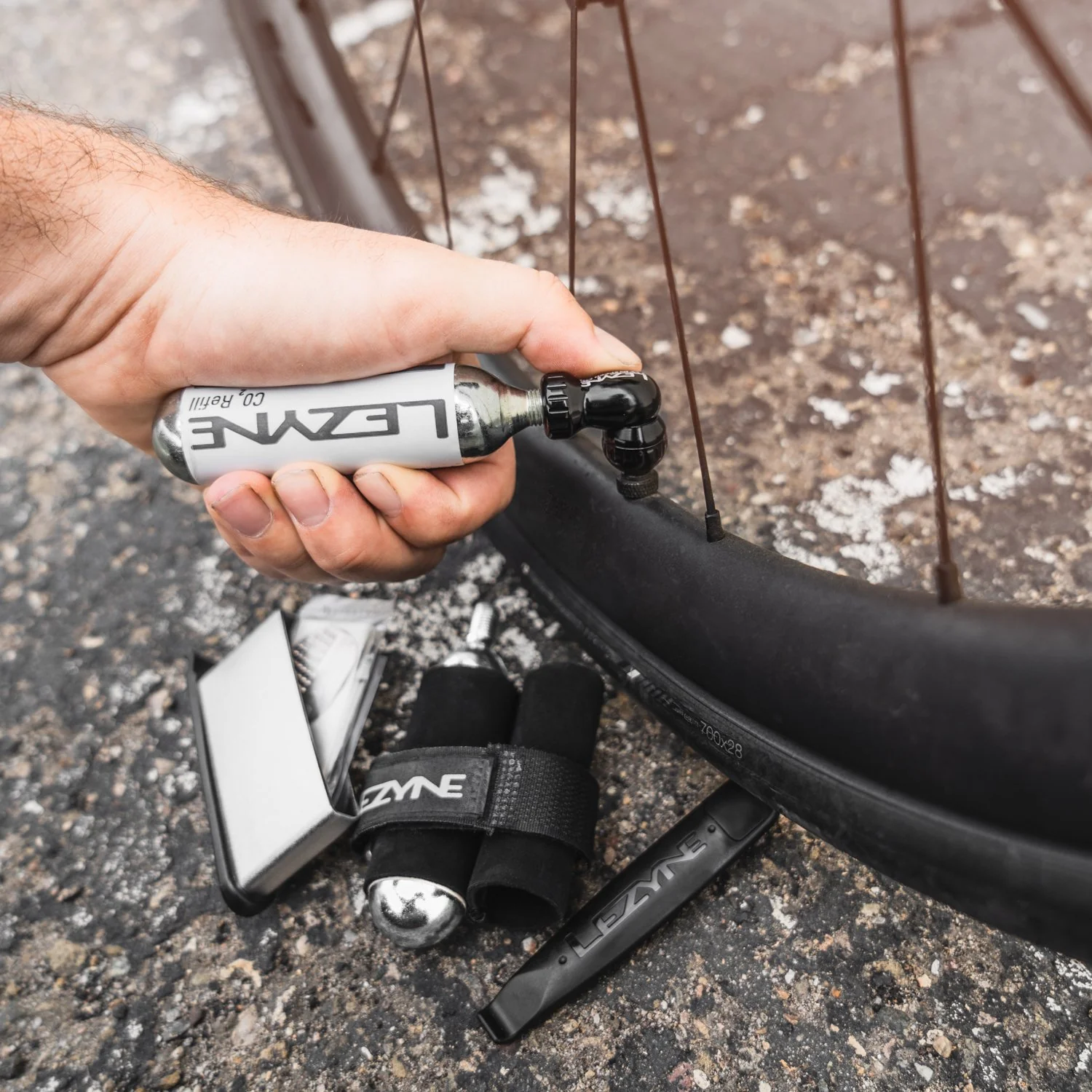

Very simple to use, you just need to put the tip on the valve and press the inflater against it to release the CO2.

Details, use guide and matching table grammage cartridge and tire volume below.

Detailed specifications of the inflater Lezyne Twin Speed Drive CO2:

• Material: Aluminium and brass
• Weight: 16 g
• Insulator neoprene case provided
• 16 g cartridge supplied



Guide to using the inflater Lezyne Twin Speed Drive CO2:



Table showing expected pressures for different types of cartridges:



Tyre type	16 g cartridge	20 g cartridge	25 g cartridge
700c x 23	9 bar	2 tires at 5.4 bar	2 tires at 6.2 bar
700c x 28	6 bar	7.3 bar	8.6 bar
700c x 35	4 bar	4.8 bar	5.5 bar
24" x 2.0	2.9 bar	3.4 bar	2 tires at 2.1 bar
26" x 1.95	2.7 bar	3.4 bar	2 tires at 2.1 bar
26" x 2.4	1.8 bar	2.2 bar	2.8 bar
27.5" x 2.25	1.5 bar	1.8 bar	2.2 bar
29" x 2.1	2.1 bar	3 bar	2 tires at 3.2 bar
20" x 2.0	3.3 bar	4 bar	2 tires at 2.5 bar
Fatbike	0,21 bar	0,34 bar	0.52 bar
