An efficient forged aluminum mirror

The mirror Ergotec has a mirror allowing an effective visualization of what is happening behind you.

It is to be fixed on your 22.2 mm handlebar external diameter, so your handles and controls have to move inwards 13 mm.

With its beautiful aluminium design, it weighs only 170g.

Rearview mirror Ergotec Forged aluminium

• Install on the left or right end of your handlebar
• Screw clamping system
• Compatible with 22.2 mm diameter hangers
• Dimensions: 10,5 x 5 cm
• Weight: 170 g
• Forged aluminium case



Instructions for installation of the mirror Ergotec

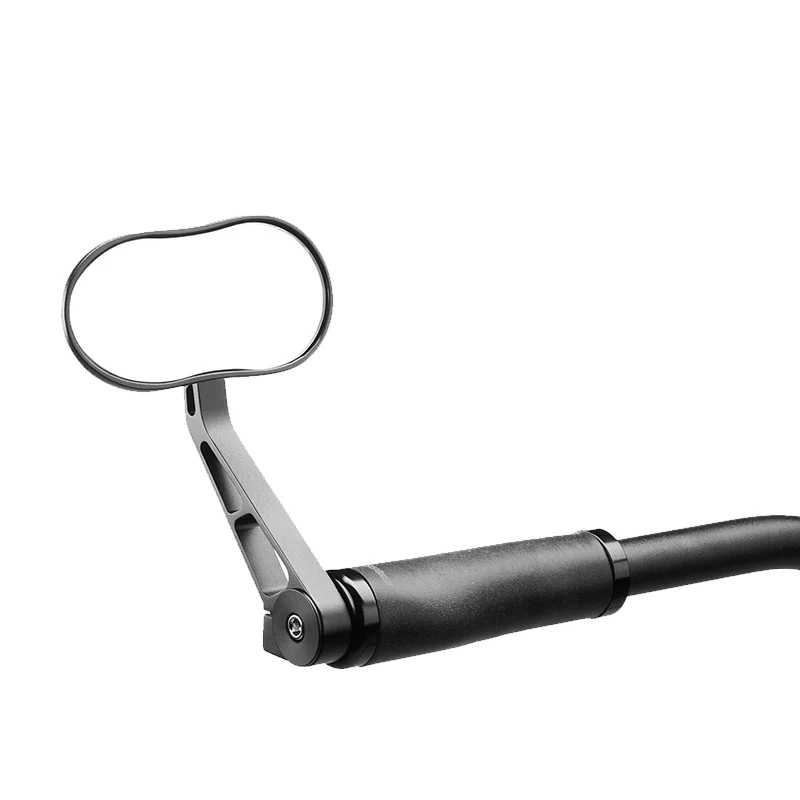

• These models are designed to be mounted at the end of the handlebar – figure 1.
• Check that handles, gear change and brakes can be moved at least 13 mm to the centre of the handlebar – figure 2
• Unlock the brake and speed system attachment screw and drag the 13 mm structure(s) and handle to the centre of the handlebar.
• Install the mirror clamp on the end of the handlebar.
• Adjust the position of the rear-view mirror and tighten the mounting screw c with a 5-mm allen key with a clamping value of 6 - 8 Nm – Figure 3.
• Adjust the structures according to your needs and tighten the fixing screw(s).
