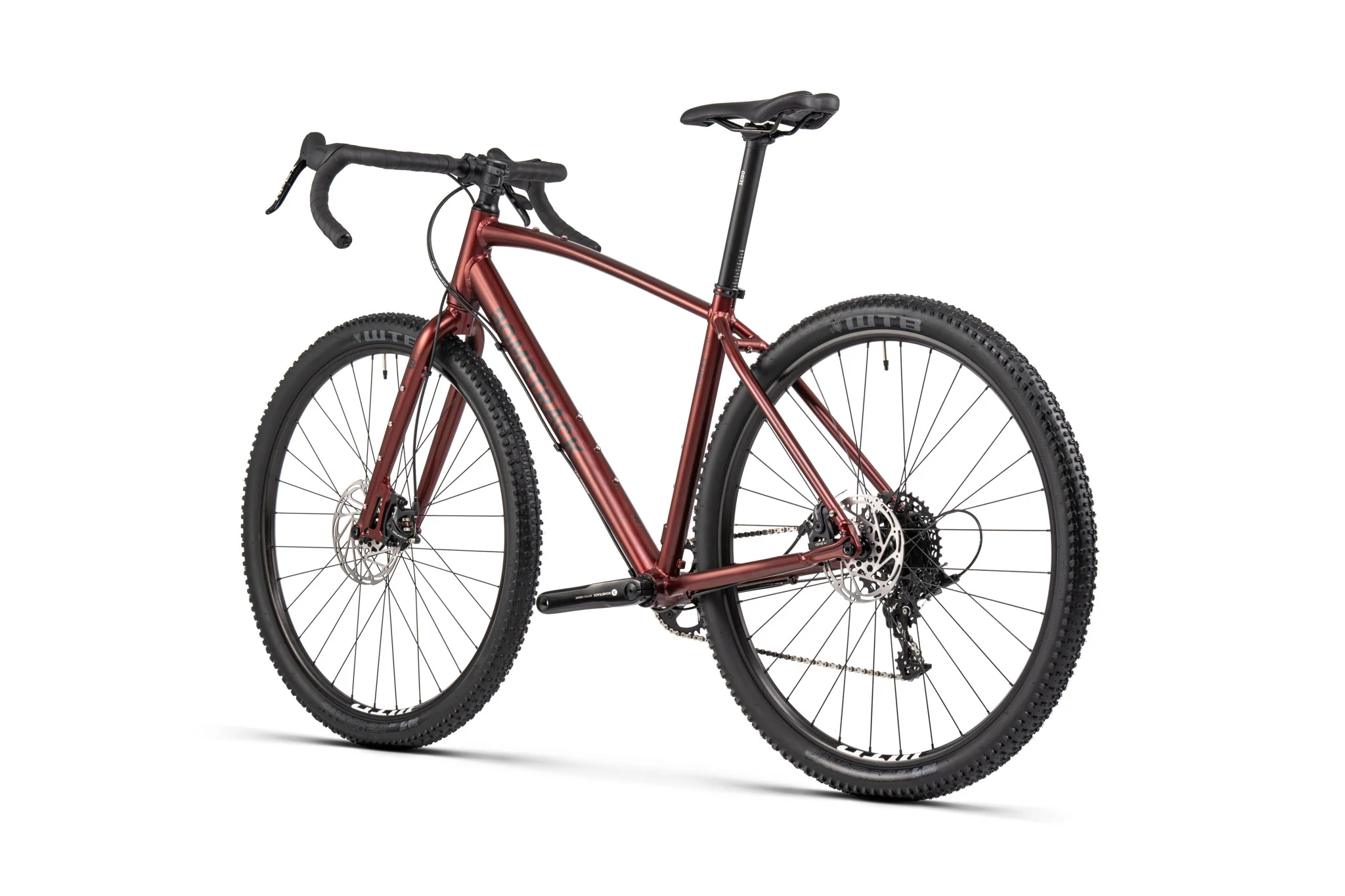

The Beyond AL is a lightweight hydroformed aluminum model.It features all the iconic ingredients of Bombtrack, such as internal dynamo cable routing, a multitude of mounting points on the aluminum frame and fork, and dropper post compatibility.

Sram's Apex 1 x 11 mechanical transmission ensures gear changes, while TRP brakes with 180 / 160 mm rotors control your momentum.

Small bikes have 27.5" wheels, while M-XL bikes have 29" wheels.Both sets of wheels have rims WTB i23 tubeless-ready, wrapped in all-conditions Ranger 2.0” tires, allowing you to ride on any surface.

"With a full range of mounting points and welds on the fork and frame, it's ready to accommodate panniers or bikepacking bags."

Size guide

Bike size	Measurements
XS	150 to 161 cm
S	160 to 171 cm
M	170 to 181 cm
L	179 to 190 cm
XL	188 to 199 cm

Specifications

Colour 1	Matte metallic red
Colour 2	-
Frame	Hydroformed 6061-T6 aluminum, TA, rack/fender mounts, stealth dropper ready, 86.5mm T47 BB shell
Fork	Aluminium 6061, TA, 1.1/2'' - 1.1/8'', mountings for mudguard/baggage rack/triple cage, internal cable routing for dynamo
Handlebar	Handlebar Bombtrack Gravel tackle, 31.8 mm, 25° flare
Handles	Handlebar tape Bombtrack Command
Potency	Forged aluminium pole Bombtrack Tramp, 3°
Steering game	Sealed integrated steering set, 1.1/2'' - 1.1/8''
Levers	Mechanical lever Sram Apex double tap
Derailer	Sram Apex double tap derailleur 1 x 11
Brakes	Mechanical disc brakes TRP Spyre C

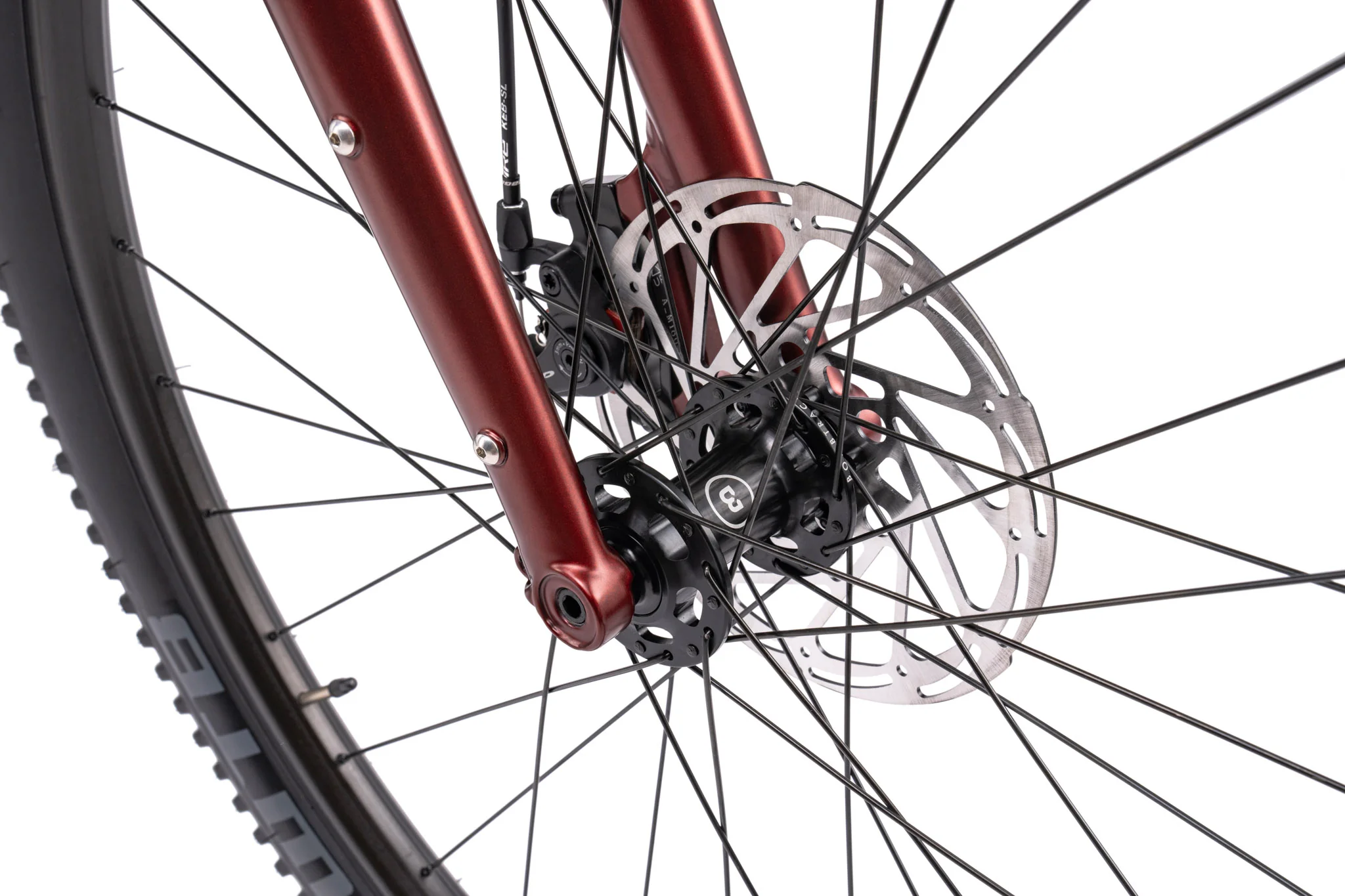

Disc	Front disc TRP 180 mm and rear disc 160 mm
Pedal	Forged aluminium pedal Bombtrack Ames, 24 mm axis
Wheel housing	BB internal sealed T47 Bombtrack for 24 mm axis
Pedals	-
Chain	Chain KMC X11, 1/2'' x 11/128'', 114L
Tray	Steel, narrow-wide, 36 T
Cassette	Cassette Sram PG-1130 11 speeds, 11 - 42 T
Front derailleur	-

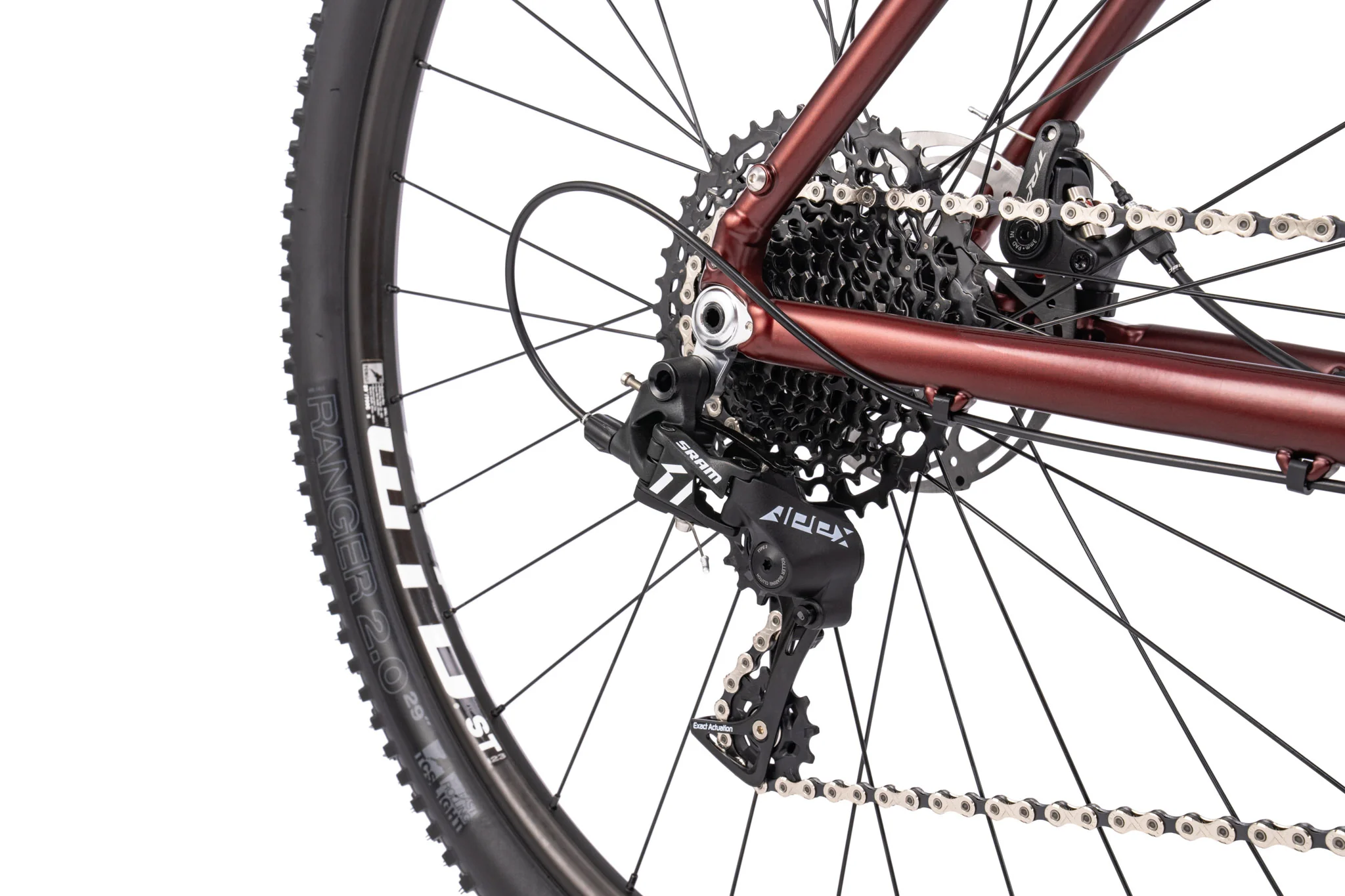

Rear derailleur	Sram Apex 1 derailleur, clutch, long
Front hub	Sealed medium Bombtrack Arc, 6 bolt disc
Rear hub	Sealed medium Bombtrack Arc, 11 speeds, 6 bolt disc
Crossing axis	12 x 100 mm / 12 x 142 mm
Front rim	Jante WTB ST i23 double wall, TCS 2.0, 32h
Rear rim	Jante WTB ST i23 double wall, TCS 2.0, 32h
Stool	Stool Bombtrack Fuzz
Upper saddle	Seido Yew aluminum saddle upper, 31.6 mm x 400 mm
Saddle necklace	Necklace Bombtrack Premium 34.9 mm
Front tyre	WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', ready for tubeless
Rear tyre	WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', ready for tubeless
Mudguard	-
Luggage carriers	-
Shell	-
Lighting	-
Weight	11.7 kg (size M)
Weight of the frame	2145 g frame (size M, incl. TA, bolts, saddle collar, derailleur holder) / 1000 g fork (300 mm steering tube, incl. TA)
Maximum weight of cyclist	140 kg including luggage
Driving condition ASTM	2
The final product can vary in appearance, finish and minor details.

Assembly information

Standard BB	T47 - hull width 86.5 mm
Steering game standard (S.H.I.S.)	IS42 / 28.6
Angle of the crown of the steering game	45°
Inner diameter of the steering tube	24.6 mm
Maximum fork tire clearance without mudguard	27.5'' x 2.25'' / 29'' x 2.1''
Maximum tire clearance from the frame without mudguard	S 27.5'' x 2.25'' / M - L 29'' x 2.25''
Maximum discharge for tray 1x	36 T with a 50 mm chain line
Maximum discharge for 2x tray	40 / 28 T with a 50 mm chain line
Diameter of saddle rod	31.8 mm
Diameter of saddle collar	34.9 mm
Diameter of the front derailleur clamp	34.9 mm
Compatible with front derailleur	yes
Front brake assembly	PM 6''
Rear brake assembly	FM 140 / 160
Maximum front rotor clearance	203 mm
Maximum rear rotor clearance	160 mm
Front crossing axis	12mm x 100mm, 1.5 thread pitch
Rear crossing axis	12 mm x 142 mm, no thread 1.5
ISO test standard	MOUNTAIN BIKING
Length of crank	S - M 170 mm / L 175 mm
Factor Q	179 mm
BCD of the pedal	104 mm, 4 bolts
Plateau offset	0 mm
Chain line	50 mm
Front wheel radius length	S 272 mm / M - XL 292 mm
Length of rear wheel spokes	S 274mm, 272mm / M - XL 293mm, 291mm
Number of spokes (front/rear)	32 / 32
ERD	S - S 570 mm / M - XL 606 mm
PCD front hub	58 mm
PCD rear hub	58 mm
Front hub flange distance / offset	56.5 mm centre to centre / 6.6 mm
Rear hub flange distance / offset	51 mm centre to centre / 8.8 mm
Length of gallows	S - M 50 mm / L - XL 80 mm
Angle of the gallows	3°
Steering game spacings	S - L 1 x 10 mm, 2 x 5 mm / XL 1 x 10 mm, 1 x 2 mm
Stitching of the saddle stem	0 mm
Seatpost length	400 mm
Bicycle trailer	approved
Child seat mounted on the seat tube	not approved

Frame geometry

Bike size	S	M	L	XL
Wheel size	27.5''	29''	29''	29''
Length of saddle tube	440	480	520	560
Horizontal length of the upper tube	546	567	597	626
Seat angle	74°	74°	74°	74°
Steering angle	70°	70.5°	70.5°	70.5°
Head tube length	140	160	200	230
Out of BB	60	74	74	74
Length of haubans	420	445	445	445
Fork clearance	53	53	53	53
Trail	70	75	75	75
Wheelbase length	1040	1077	1109	1140
Upper height	775	821	859	893
Scope	382	394	413	434
Height	569	604	642	670
Center forward	627	642	674	705
Crown axis	420	420	420	420
Minimum height of the cyclist	1600	1700	1790	1880
Maximum cyclist height	1710	1810	1900	1990

Handlebar geometry

Bike size	S	M	L	XL
Type of handlebar	Dropper	Dropper	Dropper	Dropper
Width (dropping parts)	420	440	440	440
Width (ends of handlebars)	530	550	550	550
Scope	77	77	77	77
Flare	25°	25°	25°	25°
Inclination	-	-	-	-
Drop	128	128	128	128
Upsweep	-	-	-	-
Elevation	-	-	-	-
