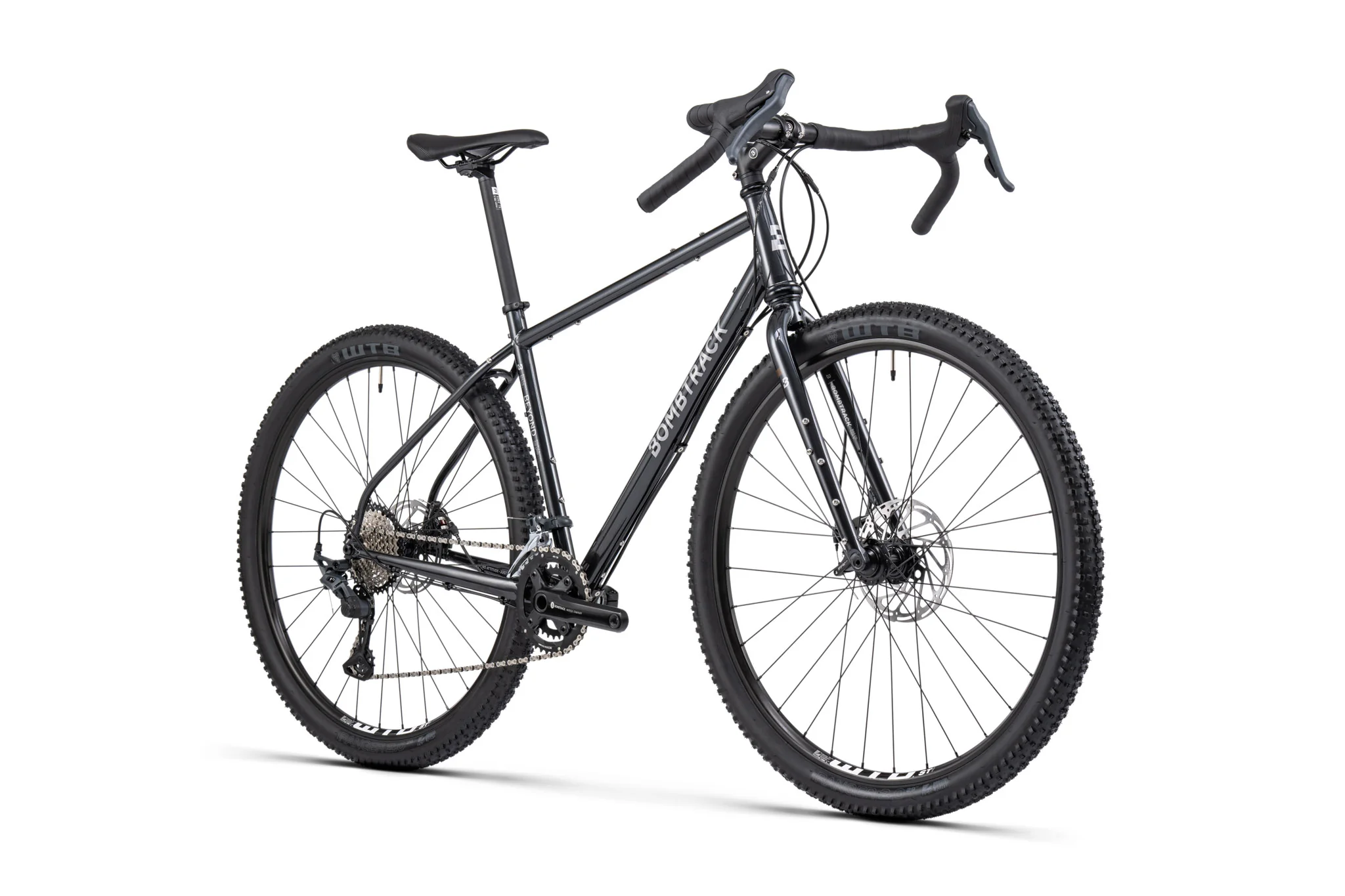

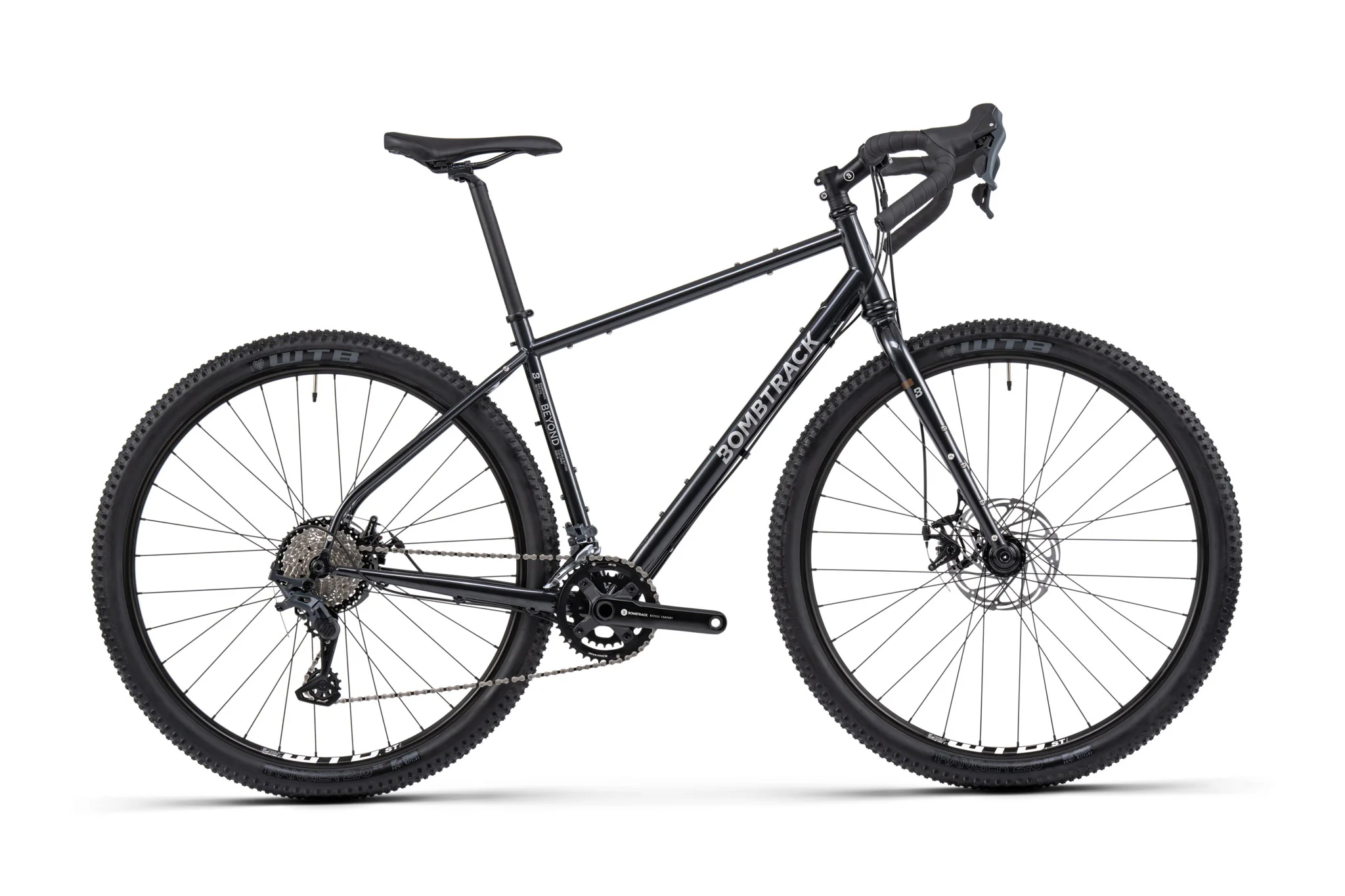

The Beyond 1 is an adventure bike with drop handlebars, designed to take the cyclist wherever his compass guides him. The frame and fork are made of 4130 double-stop, lightweight and reliable crmo tubing, with multiple mounting options for bottles and luggage racks, as well as cross axes.

Internal routing for dynamo lighting cable also eliminates the risk of hanging.

The gear shifting is ensured by Microshift with their new game 2 x 10 Sword, associated with a tape of 11 - 38T and a board game of 40 / 28T.

The brakes are TRP Spyre C mechanical calipers.

The rims WTB are ready for the tubeless and sizes 27.5 WTB Ranger TCS suitable for all conditions.

All you have to do now is choose a destination, pack your bags and go.

"Designed to cross countries and continents by all kinds of roads and roads..."

Size guide

Bike size	Measurements
XS	150 to 161 cm
S	160 to 171 cm
M	170 to 181 cm
L	179 to 190 cm
XL	188 to 199 cm

Specifications

Colour 1	Metallic black
Colour 2	-
Frame	4130 double butted crmo, TA, mountings for luggage racks, internal routing of the lighting cable
Fork	4130 crmo, double stop blades, TA, 1.1/2'' - 1.1/8'', mountings for mudguards/baggage/triple cages, internal cable routing for dynamo
Handlebar	Travel guide Bombtrack Beyond, 31.8 mm, 30° flare
Handles	Handlebar tape Bombtrack Command
Potency	Forged aluminium pole Bombtrack Wander, +17°
Steering game	Sealed external steering set, 1.1/2'' - 1.1/8''
Levers	Dual Control control lever Microshift SB-G7020
Derailer	Dual Control Derailleur Microshift SB-G7020 2 x 10
Brakes	Mechanical disc brakes TRP Spyre C
Disc	Front disc TRP 180 mm and rear disc 160 mm
Pedal	Forged aluminium pedal Bombtrack Ames, 24 mm axis
Wheel housing	BB sealed BSA, external cups
Pedals	-
Chain	Chain KMC X10, 1/2'' x 11/128'', 114L
Tray	How Do You Know
Cassette	Cassette Microshift 10 speeds, 11 - 38 T
Front derailleur	Derailer Microshift Sword FD-G7020-F
Rear derailleur	Derailer Microshift Sword RD-G7025L, clutch, long
Front hub	Sealed medium Bombtrack Arc, 6 bolt disc
Rear hub	Sealed medium Bombtrack Arc, 11 speeds, 6 bolt disc
Crossing axis	15 x 100 mm / 12 x 142 mm
Front rim	Jante WTB ST i23 double wall, TCS 2.0, 32h
Rear rim	Jante WTB ST i23 double wall, TCS 2.0, 32h
Stool	Stool Bombtrack Fuzz
Upper saddle	Seido Beech 27.2 mm x 400 mm
Saddle necklace	Bombtrack Origin 29.8 mm
Front tyre	WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', ready for tubeless
Rear tyre	WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', ready for tubeless
Mudguard	-
Luggage carriers	-
Shell	-
Lighting	-
Weight	12.9 kg (size M)
Weight of the frame	2540 g frame (size M, incl. TA, bolts, saddle collar, derailleur holder) / 1500 g fork (300 mm steering tube, incl. TA)
Maximum weight of cyclist	140 kg including luggage
Driving condition ASTM	2
The final product can vary in appearance, finish and minor details.

Assembly information

Standard BB	BSA - 73 mm hull width
Steering game standard (S.H.I.S.)	EC34 / 28.6
Angle of the crown of the steering game	45°
Inner diameter of the steering tube	25.4 mm
Maximum fork tire clearance without mudguard	XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
Maximum tire clearance from the frame without mudguard	XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
Maximum discharge for tray 1x	36 T with a 48 mm chain line
Maximum discharge for 2x tray	42 / 28 T with a chain line of 49.5 mm
Diameter of saddle rod	27.2 mm
Diameter of saddle collar	29.8 mm
Diameter of the front derailleur clamp	28.6 mm
Compatible with front derailleur	yes
Front brake assembly	PM 6''
Rear brake assembly	FM 140 / 160
Maximum front rotor clearance	203 mm
Maximum rear rotor clearance	160 mm
Front crossing axis	15 mm x 100 mm, no thread 1.5
Rear crossing axis	12 mm x 142 mm, no thread 1.5
ISO test standard	MOUNTAIN BIKING
Length of crank	XS 165 mm / S - M 170 mm / L - XL 175 mm
Factor Q	179 mm
BCD of the pedal	104 mm / 64 mm, 4 bolts
Plateau offset	0 mm
Chain line	49.5 mm
Front wheel radius length	XS - S 272mm, 273mm / M - XL 292mm, 293mm
Length of rear wheel spokes	XS - S 274 mm, 272 mm / M - XL 293 mm, 291 mm
Number of spokes (front/rear)	32 / 32
ERD	XS - S 570 mm / M - XL 606 mm
PCD front hub	58 mm
PCD rear hub	58 mm
Front hub flange distance / offset	56.5 mm centre to centre / 6.6 mm
Rear hub flange distance / offset	51 mm centre to centre / 8.8 mm
Length of gallows	XS - S 60 mm / M - L 80 mm / XL 90 mm
Angle of the gallows	17°
Steering game spacings	1 x 10 mm, 2 x 5 mm, XL : 1 x 10 mm, 1 x 5 mm
Stitching of the saddle stem	24 mm
Seatpost length	400 mm
Bicycle trailer	approved
Child seat mounted on the seat tube	approved

Frame geometry

Bike size	XS	S	M	L	XL
Wheel size	27.5''	27.5''	29''	29''	29''
Length of saddle tube	400	440	480	520	560
Horizontal length of the upper tube	494	522	558	590	623
Seat angle	75.0°	74.5°	73.5°	73.0°	72.5°
Steering angle	70.0°	70.5°	71.0°	72.0°	72.0°
Head tube length	100	130	150	190	220
Out of BB	55	55	70	70	70
Length of haubans	425	425	455	455	455
Fork clearance	50	50	50	50	50
Trail	73	70	73	67	67
Wheelbase length	1000	1021	1065	1082	1109
Upper height	727	761	802	842	873
Scope	349	364	379	392	411
Height	538	568	604	646	675
Center forward	581	602	620	636	663
Crown axis	420	420	420	420	420
Minimum height of the cyclist	1500	1600	1700	1790	1880
Maximum cyclist height	1610	1710	1810	1900	1990

Handlebar geometry

Bike size	XS	S	M	L	XL
Type of handlebar	Dropper	Dropper	Dropper	Dropper	Dropper
Width (dropping parts)	420	420	440	440	460
Width (ends of handlebars)	594	594	614	614	634
Scope	85	85	85	85	85
Flare	30°	30°	30°	30°	30°
Inclination	-	-	-	-	-
Drop	115	115	115	115	115
Upsweep	-	-	-	-	-
Elevation	-	-	-	-	-
